Ducato Goods Transport

Ducato Goods Transport

LOAD COMPARTMENT

RANGE AND LOAD CAPACITY

A huge variety of combinations, for endless transport solutions

FLEXIBILITY

Custom-made solutions by authorised outfitters
A fully-equipped mobile workshop in your van
For on-site technical and mechanical assistance, fitted with an aluminium loading platform and internal shelving.
Refrigeration/Isothermal outfit
For carrying food and medicine, in compliance with the applicable standards in force, insulated with or without refrigerator.

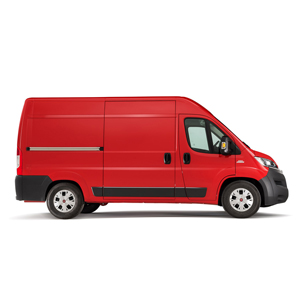

ACCESSIBILITY

You can make the most of every last centimetre of space when loading your goods
The sliding side doors are available in 2 widths, 1075 and 1250 mm, and 2 heights, 1485 and 1755 mm.

And not only that

  • the upper slide rail is designed to facilitate opening and closing
  • the suitcase-style handlesare easy to grip.

A second sliding side door – on the right hand side – is available on request.
The load compartment is extremely easy to access via the rear door:
• the door is over 1.5 m high on the low roof version, almost 1.8 m on the high roof version, and over 2 m on the super high roof, truly a record height – meaning you have no need to tilt your goods to load them;
two opening options 180° and 270°, for easier movement around the vehicle in confined spaces.

Self-levelling suspension

To keep you level at all times, irrespective of load weight and arrangement, thus increasing safety and driving comfort.
Allows you to raise or lower the load platform when the vehicle is parked in order to:

  • make the handling of your goods easier improve the ramp angle or pass over an  obstacle beneath the vehicle

VAN

Generous in volume, generous in capacity

  • 3 wheelbases, 4 lengths, 3 heights
  • 8 volume options, from 8 to 17 m3
  • iding side door and rear door both available in 3 different size options
  • Sl
  • GVW : 2600 to 4250 kg
  • payload from 1000 to 2200 kg.
  • Maximum permitted axle loads up to 2100 kg on the front and up to 2500 kg on the rear
  • 2 different mechanical structures, the Ducato and the Ducato Maxi with reinforced suspension and 16” wheels

LOAD COMPARTMENT

The load compartment is square and even, and every last bit of space can be used:

  • it is between 267 and 407 cm long
  • and up to 166 to 217 cm high
  • the width between the wheel arches is 142 cm, meaning 120 cm Euro pallets can be loaded quickly and easily
  • the flatbed can be protected by a highly resistant plywood cover
  • the interior walls can be covered in thermoformed plastic panels
  • to fix and retain the load in place, 4 securing hooks are available at the sides of the load compartment, as well as several anchoring points on the flatbed
  • a bright interior is guaranteed by the 15 W ceiling lights – an additional 12 V power point inside the load compartment is also available on request, as well as a removable rechargeable ceiling light.

The partition between the load compartment and the passenger compartment may be panelled or glazed with sliding glass.

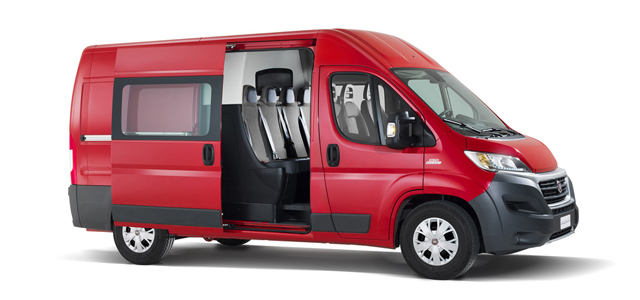

CREW CAB VAN

Designed to carry your crew

Crew Cab Van

  • 3 lengths, 2 heights
  • double row of seats to seat up to 7 people
  • GVW options from 3300 to 3500 kg
  • payload from 1480 to 2880 kg
  • volumes of 3.6 – 8.3
  • designed to make room for your crew pipe storage compartment of 1.1 m under the rear seats

GVW: 3300 to 3500 kg
Payload:  1194 to 1489 kg
Volume: from 3.6 to 8.3 m3
Wheelbase: 3000, 4035 mm
External dimensions:
– Length: 4963 to 6363 mm
– Height: 2254 to 2539 mm
– Width: 2050 mm
Load compartment dimensions:
– Height: 1.662 m to 1.932 m
– Width: 1.87 m
– Width between wheel arches: 1.42 m
– Length: 1.48 m to 2.88 m
No. of seats in cab: 6/7

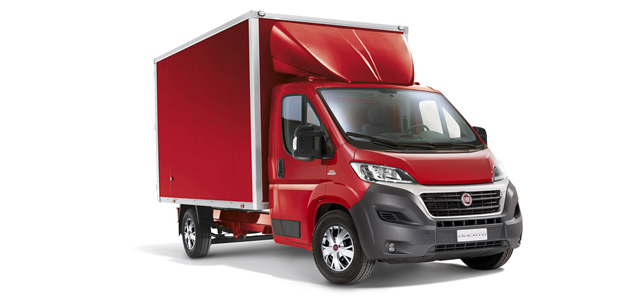

TRUCK

Functionality, capacity, practicality and comfort.

  •  4 wheelbases
  • 5 lengths
  • 2 types of cab, single and double
  • GVW from 3000 to 4250 kg
  • maximum permitted load of 2100 kg on the front axle and up to 2500 kg on the rear axle
  •  8 body dimensions with surface areas from 4.9 to 8.5 m2
  • 2 different mechanical structures, the Ducato and the Ducato Maxi with reinforced suspension and 16” wheels.



LOAD COMPARTMENT

The sturdy and reliable original flatbeds are produced using state of the art materials and technologies:

  • the load platform, 2 m wide and 8 to 4.2 m long, is crafted from Scandinavian timber and treated with phenol resins to ensure an anti-slip surface which is highly resistant to abrasion
  • the side boards are made of aluminium profiles, making them undeformable and light for optimised payload, 40 cm high and fitted with an access step.

The load surface ranges from 4.9 to 8.5 m2.


Trucks

GVW: 3000 to 3500 kg
Capacity: 1110 to 1625 Kg
Load area: 5.7 to 8.5 m²
Wheelbase: 3000, 3450, 4035 and 4035 XL mm
External dimensions:
– Length: 5293 to 6693 mm
– Height: 2424 mm
– Width: 2100 mm
Flatbed interior dimensions:
– Width 2.034 m
– Length: 2.798 m to 4.198 m
– Side height: from 0.4 m
No. of seats in cab: 2/3

Maxi Truck

GVW: 3000 to 42.250 kg
Capacity: 1110 to 2120 Kg
Load area: 6.6 to 8.5 m²
Wheelbase: 3450, 3800, 4035 and 4035 XL mm
External dimensions:
– Length: 5743 to 6693 mm
– Height: 2424 mm
– Width: 2100 mm
Flatbed interior dimensions:
– Width 2.034 m
– Length: 3.428 m to 4.198 m
– Side height: from 0.4 m
No. of seats in cab: 2/3

Crew Cab Truck

GVW: 3300 to 3500 kg
Capacity: 1225 to 1535 Kg
Load area: 4.9 to 5.9 m²
Wheelbase: 3450, 4035 mm
External dimensions:
– Length: 5738 to 6228 mm
– Height: 2424 mm
– Width: 2100 mm
Flatbed interior dimensions:
– Width: 2 m
– Length: 2.398 m to 2.888 m
– Side height: from 0.4 m
No. of seats in cab: 6/7

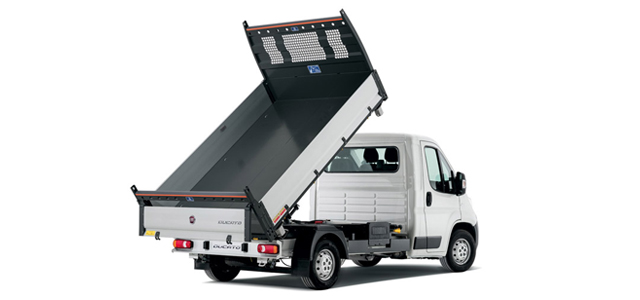

TRUCK WITH FLAT-BED TIPPE

Designed, built and guaranteed directly by Fiat Professional



  • 2 wheelbases
  • GVW options from 3300 to 3500 kg
  • payload from 927 to 1162 kg
  • flat-bed tipper with a surface area of between 5.1 and 6.8 m2

solid steel structure to withstand the toughest working conditions.



LOAD COMPARTMENT
The sturdy and reliable original flatbeds were designed to simplify work in the toughest conditions:

  • the load bed, which is 2 m wide and between 5 and 3.3 m long, is made of sturdy steel
  • the sturdy aluminium side boards are 39 cm high and fitted with a practical access step.

The load surface ranges from 5.1 to 6.8 m2.


Truck with flat-bed tipper

GVW: 3300 to 3500 kg
Payload: 927 to 1162 kg
Load area: from 5.1 to 6.8 m2
Wheelbase: 3000, 4035 mm
External dimensions:
– Length: 5028 to 6123 mm
– Width: 2100 mm
Load compartment dimensions:
– Side height: 0.39 m
– Width: 2.040 m
– Length: 2.525 m to 3.325 m
No. of seats in cab: 2/3


Tipper

GVW: 3300 to 3500 kg
Payload: 772 to 972 kg
Load area: 5.6 m2
Wheelbase: 4035 mm
External dimensions:
– Length: from 6123 mm
– Width: 2100 mm
Load compartment dimensions:
– Side height: 0.320 m
– Width: 2.040 m
– Length: 2.750 m
No. of seats in cab: 6/7
