Doblò cargo

Doblò cargo

Verð: 3.895.161 án vsk.

RANGE AND LOAD CAPACITY

So many great solutions for transporting your work

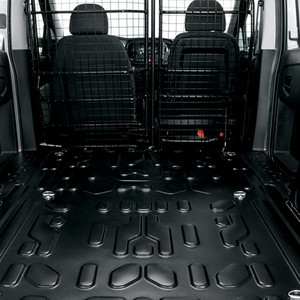

LOAD COMPARTMENT

Best in class load capacity

  • A wide and even space with smooth surfaces, free from protrusions.
  • Up to 2170 mm in length, extendable up to 3400 mm thanks to the swivel partition and the folding passenger seat.
  • Up to 1550 mmhigh and 1714 mmwide.
  • Load capacity from 3.4 to 5 m³, can be increased by 0.4 m³ thanks to the swivel partition.
  • Width between wheel arches1230 mm.
  • Panelled floor with 6 load retaining hooks and inspection plug.
  • Washable, waterproof PVC load platform.
  • 9 types of partition (panelled, panelled and soundproofed, glazed, glazed and soundproofed, ladder, grill and two-part grill, of which one part swivels, multifunctional tubular for 3-seater cab versions).
  • 2 service lights, one above the sliding door and the other above the rear door.

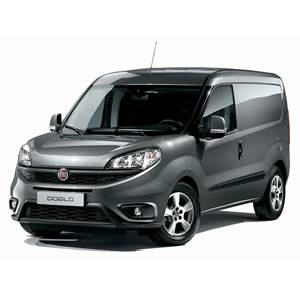

STANDARD VAN

Practical, robust and functional in every situation

  • 9 versions available.
  • Load compartment lengthfrom 1820 mm to 3050 mm – with front passenger seat folded down.
  • Load compartment widthfrom 1518 mm to 1714 mm.
  • Height 1305 mm.
  • Volume from 4 to 3.8 m³ -with front passenger seat folded down.
  • Payload from 750 to 1005 kg.
  • With special tyres, reinforced suspension and an upgraded brake system.

Van
GVW: from 2000 to 2400 kg
Capacity: from 750 to 1000 kg
Volume: from 3.4 to 4.2 m³
Wheelbase: 2755 and 3105 mm
External dimensions:
– Length: 4390 and 4740 mm
– Height: 1845 and 2100 mm
– Width: 1832 mm
Load compartment dimensions:
– Height: 1.31 m and 1.55 m
– Width: 1.714 m
– Width between wheel arches: 1.23 m
– Length: from 3.05 m to 3.40 m
No. of seats in cab: 2

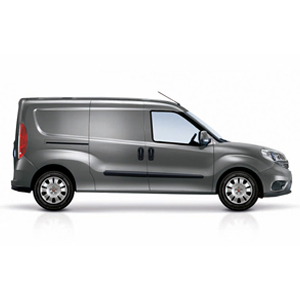

MAXI VAN

35 cm more length and a record payload

  • 9 versions available.
  • Load compartment lengthfrom 2170 mm to 3400 mm – with front passenger seat folded down.
  • Load compartment widthfrom 1518 mm to 1714 mm.
  • Height 1305 mm.
  • Volume from 2 to 4.6 m³ with front passenger seat folded down.
  • 1005 kg payload.



HIGH ROOF VAN

Even more height, even more space

  • 8 versions
  • Height 1550 mm. Load compartment lengthfrom 1820 mm to 3050 mm – with front passenger seat folded down.
  • Load compartment widthfrom 1518 mm to 1714 mm.
  • Volume from 4 to 4 m³ with front passenger seat folded down.
  • Payload from 750 to 1005 kg.

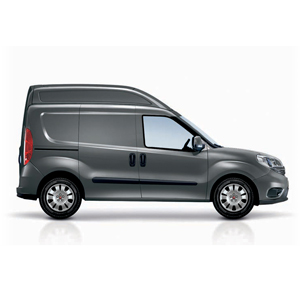

XL VAN

High top, long wheelbase, extra space

  • Height of load compartment 1550 mm.
  • Load compartment length from 2170 to 3400 mm – with front passenger seat folded down.
  • Load compartment width from 1518 to 1714
  • Volume from0 to 5.4 m³ – with front passenger seat folded down.
  • Payload is 1005 kg.

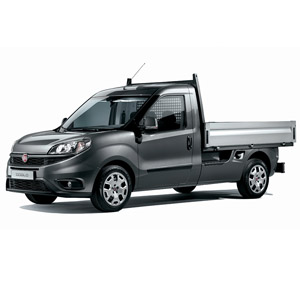

DOBLÒ WORKUP

Made to measure for your work, made to measure for cities

  • 3 m long, 1.82 m wide and 4 square metres of surface area for transporting up to 3 Euro pallets or 33 crates of fruit.
  • Body with marine plywood platform and shaped folding aluminium sideboards.
  • Pole/ladder rack with load securing hooks to hold up to 300 kg.
  • External storage compartment with lock,located under the load compartment, for stowing tools up to 2 metres long.
  • Side access step to facilitate access into the body.
  • Folding steps located inside the sideboard.

Work-Up

GVW: from 2400 to 2500 kg
Capacity: from 1000 kg
Load area: from 4.2 m²
Wheelbase: 3105 mm
External dimensions:
– Length: 4965 mm
– Width: 1872 mm
Flatbed interior dimensions:
– Width: 2.034 m
– Length: 1.818 m
– Side height: from 0.36 m
No. of seats in cab: 2

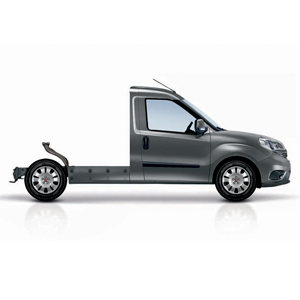

CHASSIS CAB WITH LOAD PLATFORM

An ideal base for conversion, perfect to meet all your working needs

  • 2 versions available: short wheelbase (2755 mm) and long wheelbase (3105 mm).
  • Record maximum permitted axle load from 1200 kg* (front) to 1450 kg (rear).
  • Maximum body length of 2285 mm (2795 mm for the long wheelbase version), maximum body width of 1870 mm.
  • Platform length 1765 mm (2115 for the long wheelbase version).
  • GVW from 2210 to 2505 kg.

* on 1.6 and 2.0 MJt versions

All types of vehicle body can be easily adapted to fit the body shell; a specific interface for electrical systems may also be requested.

Chassis Cab with Platform

GVW: 2300 and 2400 kg
Wheelbase: 2755 and 3105 mm
External dimensions:
– Length: 4211 and 4161 mm
– Cabin height: 1845 mm
Maximum practicable width: 1870 mm
Platform length 1765 mm (2115 for the long wheelbase version)
Maximum permitted axle loads:
– Front axle: up to 1120 kg
– Rear axle: up to 1450 kg
No. of seats in cab: 2
